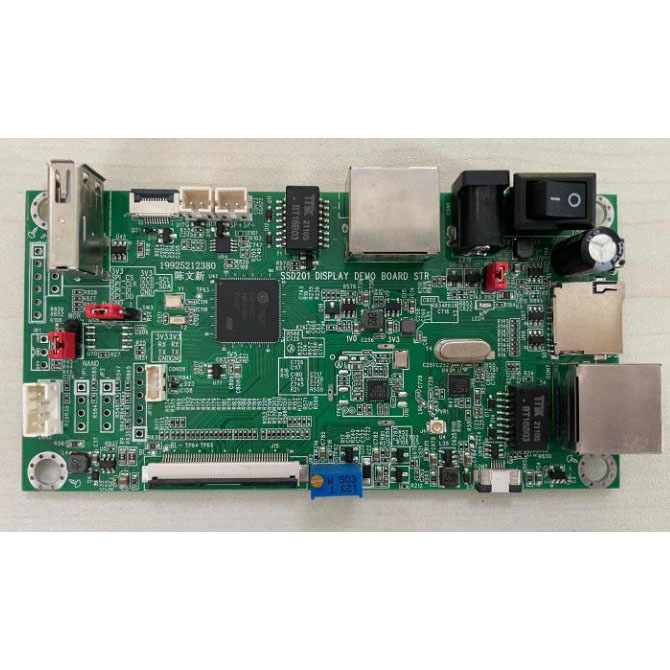

SSD201 SOC Embedded Board

YCTECH industrial product control board development includes industrial control board software design, software upgrade, schematic diagram design, PCB design, PCB production and PCBA processing located in the east coast of China. Our company designs, develops and manufactures SSD201 SOC Embedded board. • Sigmastar SSD201/SSD202 highly integrated processor, Cortex-A7 dual-core, 1.2 GHz main frequency

• Highly cost-effective choice, suitable for various application scenarios that do not require high performance but are demanding on cost

• Support dual 100M Ethernet, 2.4G WiFi and 4G mobile communication

• Customized embedded Linux4.9 operating system, extremely fast system startup speed

• Support MIPI-DSI 4-channel interface, support LVDS interface, support 1920 x1080@60fps output

• Equipped with rich peripheral interfaces such as I2C, UART, USB, RS232, RS485, CAN, audio and video input and output

• The immersion gold process is solid and material, and the working temperature is -20~80°C, ensuring stable operation for 7×24 hours in harsh environments

• Open carrier board design, provide comprehensive technical information, support a full range of one-stop customization services

DB201/DB202 adopts Sigmastar's highly integrated embedded SoC, adopts ARM Cortex-A7 dual core, integrates H.264/H.265 video decoder, built-in DDR, equipped with dual 100M network ports, multiple USB2.0, RS485, RS232, Expansion interfaces such as MIPI DSI, RGB, and LVDS display connections are extremely cost-effective, and are widely used in smart building display terminals, smart home displays, smart home appliances, IP network broadcasting equipment, electric vehicle instruments, industrial IoT gateways, industrial HMI and other application scenarios that do not require high performance but are demanding on cost.
